MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

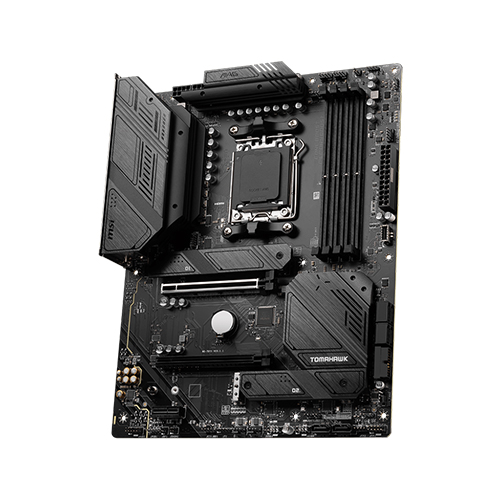

The MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard is a high-performance motherboard designed for gaming and computing enthusiasts. It features the advanced AMD B650 chipset and supports the latest AMD Ryzen 7000 Series Desktop Processors, making it ideal for building a powerful and future-proof gaming rig.

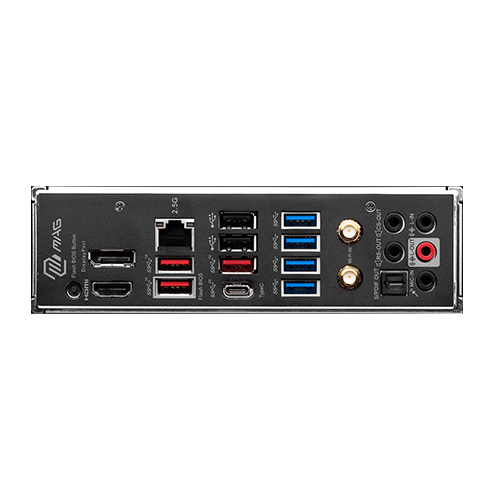

The motherboard has an ATX form factor with dimensions of 243.84mm x 304.8mm, providing ample space for expansion and connectivity options. It features a range of back panel ports, including a DisplayPort 1.4, HDMI 2.1, USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A, USB 2.0 ports, and a 2.5G LAN port for high-speed networking. It also offers support for Wi-Fi and Bluetooth connectivity, ensuring seamless wireless connectivity options.

For audio enthusiasts, the motherboard incorporates the Realtek ALC4080 Codec, delivering high-performance 7.1-channel audio with support for S/PDIF output. It also supports up to 32-bit/384 kHz playback on the front panel, ensuring an immersive audio experience.

The MSI MAG B650 TOMAHAWK WIFI motherboard offers excellent expandability with its multiple expansion slots. It features two PCI-E x16 slots that support x16/x4 configurations, allowing for multi-GPU setups or high-speed PCIe devices. Additionally, it includes a PCI-E x1 slot and supports various PCIe generations for enhanced compatibility and performance.

In terms of memory, the motherboard supports the next-generation DDR5 technology with four DDR5 slots, enabling a maximum memory capacity of 192GB. It supports memory speeds of up to DDR5 6000+ MHz (OC), delivering exceptional performance for memory-intensive applications and gaming.

The storage capabilities of the motherboard are impressive, featuring three M.2 slots and six SATA 6G ports. The M.2 slots support PCIe 4.0 x4 connectivity, allowing for lightning-fast NVMe SSD performance. The motherboard also supports RAID configurations for both SATA and M.2 NVMe storage devices, providing data redundancy and performance optimization.

With its robust features, the MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard offers an excellent foundation for building a high-end gaming or productivity system. It combines cutting-edge technologies, extensive connectivity options, and reliable performance to meet the demands of modern PC enthusiasts.

Features

• AMD B650 Chipset: The motherboard is built around the advanced AMD B650 chipset, providing excellent performance and compatibility with AMD Ryzen 7000 Series Desktop Processors.
• DDR5 Memory Support: The motherboard supports the latest DDR5 memory technology, allowing for higher bandwidth and faster data transfer rates. It can accommodate up to four DDR5 memory modules with a maximum capacity of 192GB.
• Expansion Slots: The motherboard features two PCI-E x16 slots that support x16/x4 configurations, ideal for multi-GPU setups or high-speed PCIe devices. It also includes a PCI-E x1 slot for additional expansion options.
• High-Performance Audio: With the Realtek ALC4080 Codec, the motherboard delivers 7.1-channel high-performance audio. It supports S/PDIF output and offers up to 32-bit/384 kHz playback on the front panel, ensuring immersive and crystal-clear audio.
• Extensive Connectivity: The back panel of the motherboard offers a wide range of ports, including DisplayPort 1.4, HDMI 2.1, USB 2.0 and USB 3.2 Gen 1 Type-A ports, USB 3.2 Gen 2 10Gbps Type-A and Gen 2x2 20Gbps Type-C ports, as well as HD audio connectors and a 2.5G LAN port.
• Multiple Storage Options: The motherboard provides ample storage capabilities with three M.2 slots that support PCIe 4.0 x4 connectivity and six SATA 6G ports. It also supports RAID configurations for both SATA and M.2 NVMe storage devices, offering enhanced data protection and performance.
• Advanced Networking: The motherboard features AMD Wi-Fi 6E technology, providing fast and reliable wireless connectivity. It supports MU-MIMO TX/RX and offers various bandwidth options in 2.4GHz, 5GHz, or 6GHz bands. Additionally, it supports Bluetooth 5.3 for seamless wireless device connectivity.
• LED Features: The motherboard includes four EZ Debug LEDs, allowing for easy troubleshooting and diagnostics. It also has addressable RGB LED and RGB LED connectors, enabling customizable lighting effects to enhance the aesthetics of your build.
• Easy BIOS Update: The motherboard comes with a convenient Flash BIOS Button, making it easy to update the BIOS without the need for a CPU or memory.
• Operating System Compatibility: The motherboard supports Windows 11 64-bit and Windows 10 64-bit, ensuring compatibility with the latest operating systems.

Overall, the MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard offers an array of advanced features, impressive connectivity options, and solid performance, making it an excellent choice for gaming enthusiasts and PC builders.
