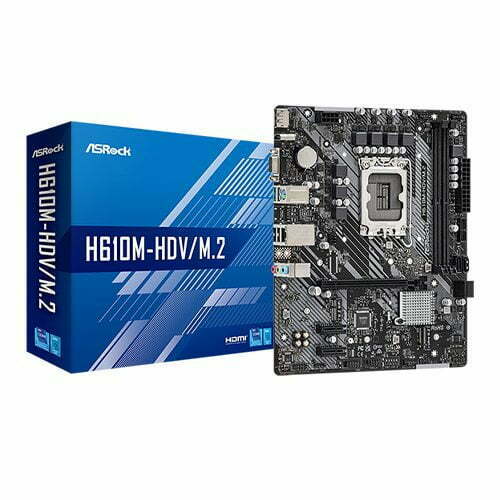

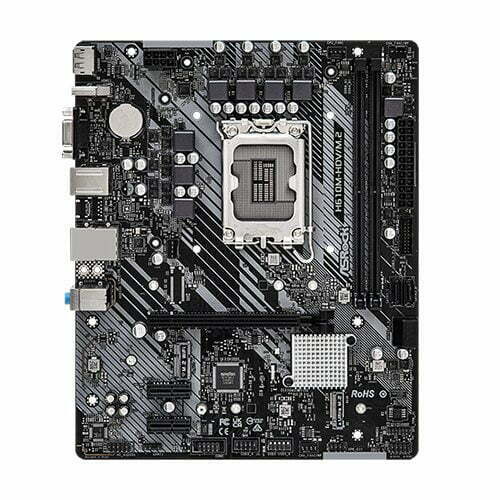

ASRock H610M-HDV/M.2 12th Gen Intel Micro ATX Motherboard

ASRock H610M-HDV/M.2 12th Gen Intel Micro ATX Motherboard
ASRock H610M-HDV/M.2 12th Gen Intel Micro ATX Motherboard
ASRock H610M-HDV/M.2 12th Gen Intel Micro ATX Motherboard
-11 %
ASRock H610M-HDV/M.2 12th Gen Intel Micro ATX Motherboard
ASRock H610M-HDV/M.2 12th Gen Intel Micro ATX Motherboard
ASRock H610M-HDV/M.2 12th Gen Intel Micro ATX Motherboard
ASRock H610M-HDV/M.2 12th Gen Intel Micro ATX Motherboard
9,999৳
11,200৳
Ex Tax: 9,999৳
EMI starts at 3,506৳/month. View all 25 banks EMI plans >
  • Stock: In Stock
  • Brand: ASRock
  • Model: Model

Key Features

    • Model: H610M-HDV/M.2
    • 6 Phase Power Design
    • Supports DDR4 3200MHz
    • Intel Gigabit LAN
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) - Supports Surge Protection
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Chipset - Intel® H610
Form Factor - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor design
Graphics Specifications
Graphics - Intel® Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Generel information
CPU - Supports 12th Gen Intel® Core™ Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE
Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel® Extreme Memory Profile (XMP) 2.0
OS - Microsoft® Windows® 10 64-bit / 11 64-bit

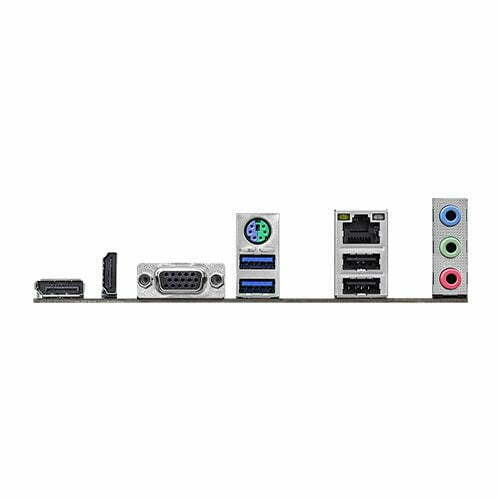

Rear Panel I/O - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors

ASRock H610M-HDV/M.2 12th Gen Intel Motherboard

ASRock H610M-HDV/M.2 12th Gen Intel Motherboard features a 6 Phase Power Design and it supports DDR4 3200MHz. uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard are greatly enhanced. The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Intel LAN provides the best throughput performance, lower CPU utilization, and enhanced stability, and is able to deliver the ultimate network experience to users. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. It comes with a D-Sub + DisplayPort + HDMI combo. It supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz. It also supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz. D-Sub with max. resolution up to 1920x1200 @ 60Hz. It comes with support HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports.
