GIGABYTE GA-H81M-H Micro ATX Motherboard

Gigabyte GA-H81M-H Micro ATX Motherboard

The GIGABYTE GA-H81M-H is a Micro ATX motherboard designed for excellent performance and compatibility with Intel Core processors in the LGA1150 package. This motherboard offers a range of features and capabilities that cater to both casual users and gamers looking to build a reliable and efficient system.

One of the key features of this motherboard is its BIOS, which comes equipped with a 32 Mbit flash and uses a licensed AMI EFI BIOS. It supports various industry standards like PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring optimal system performance and smooth operation.

The Intel H81 Express Chipset ensures stability and performance, providing a solid foundation for the motherboard. The Micro ATX form factor, measuring 22.6cm x 17cm, allows for easy integration into compact cases without compromising on functionality.

Audio is handled by the Realtek ALC887 codec, delivering high-definition audio with support for 2/4/5.1/7.1-channel configurations. This ensures an immersive audio experience while gaming or watching multimedia content.

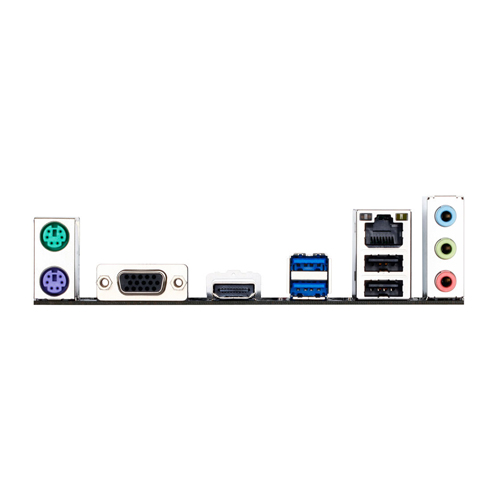

On the back panel, users have access to a range of connectivity options, including a PS/2 mouse and keyboard port, D-Sub, and HDMI ports for display connections. Additionally, there are two USB 3.0/2.0 ports and two USB 2.0/1.1 ports for peripheral devices. The RJ-45 port provides a stable and fast Gigabit Ethernet connection, while the three audio jacks cater to various audio needs.

The motherboard supports a wide range of Intel processors, including Intel Core i7, i5, i3, Pentium, and Celeron CPUs. It also features a PCI Express x16 slot for a graphics card running at x16, along with two PCI Express x1 slots for expansion cards.

For hardware monitoring, the motherboard features voltage, temperature, and fan speed detection, ensuring that the system operates within safe parameters. It also provides warnings in case of overheating or fan failure.

GIGABYTE GA-H81M-H Motherboard Price In BD

Looking to build or upgrade your home PC? Consider the GIGABYTE GA-H81M-H Micro ATX Motherboard, now available at Ultratech with the latest price in BD 2023. This motherboard strikes a perfect balance between efficiency and reliability, making it an excellent choice for home users. Whether you're browsing the web, streaming multimedia content, or playing casual games, this motherboard's Intel H81 Express Chipset and support for DDR3 memory modules ensure a smooth experience.

Features

•  BIOS: It comes with a 32 Mbit flash BIOS that uses licensed AMI EFI technology. The motherboard supports various standard interfaces such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.
• Chipset: The motherboard is equipped with the Intel H81 Express Chipset, which provides essential features and connectivity options.
• Form Factor: The GA-H81M-H has a Micro ATX form factor, measuring 22.6cm x 17cm, making it suitable for compact desktop builds.

• Audio Feature: The onboard audio is powered by the Realtek ALC887 audio codec, providing high-definition audio support for 2/4/5.1/7.1-channel audio configurations.

• Back Panel Connectors: The rear panel includes a variety of connectors, such as PS/2 mouse and keyboard ports, D-Sub and HDMI video outputs, USB 3.0/2.0 ports, RJ-45 Ethernet port, and audio jacks for Line In, Line Out, and Mic In.

• CPU Support: The motherboard supports a wide range of Intel processors, including Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA1150 package.

• Expansion Slots: It features one PCI Express x16 slot running at x16 speed and two PCI Express x1 slots for additional expansion cards.

• H/W Monitoring: The motherboard has hardware monitoring capabilities that allow you to monitor system voltage, CPU/system temperature, and CPU/system fan speed. It can also issue warnings for overheating or fan failure.

• I/O Controller: The motherboard utilizes an iTE I/O Controller Chip to manage various input/output functions.

• Memory Support: It provides two 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory. The motherboard supports dual-channel memory architecture and DDR3 memory modules running at 1600/1333 MHz.

•  Onboard Graphics: The GA-H81M-H features Intel HD Graphics support with D-Sub and HDMI ports. It allows for a maximum shared memory of 1 GB to enhance graphics performance.

• Operating System Support: The motherboard is compatible with Windows 10, 8.1, 8, and 7 operating systems.

• Storage Interface: The motherboard comes with a storage interface that includes two SATA 6Gb/s connectors (SATA3 0/1) and two SATA 3Gb/s connectors (SATA2 2/3) for connecting storage devices.

• USB: It provides multiple USB ports, including two USB 3.0/2.0 ports on the back panel and six USB 2.0/1.1 ports for connecting various USB devices.
