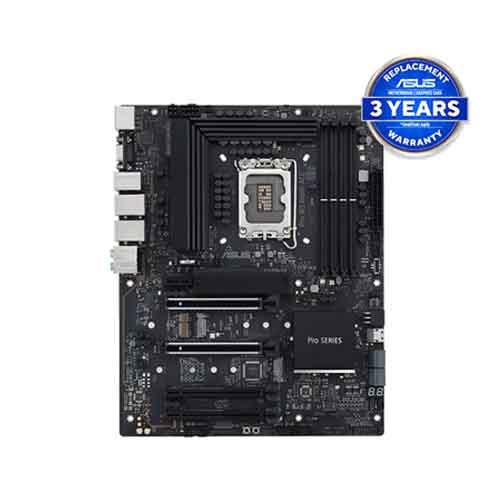

ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard

ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
-6 %
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard
48,400৳
51,500৳
Ex Tax: 48,400৳
EMI starts at 16,972৳/month. View all 25 banks EMI plans >
  • Stock: In Stock
  • Brand: Asus
  • Model: Pro WS W680-ACE

Key Features

    • Chipset: Intel W680 Chipset for 13th Gen Intel Processors
    • Socket: LGA1700
    • M.2 slots: 3 x M.2 slots
    • Memory: 4 x DIMM, Max. 192GB, DDR5
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Chipset Intel W680 Chipset
Form Factor ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Generel information
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x Q-connector
1 x M.2 Rubber Packages
2 x Screw package for M.2 SSD
1 x Screw package for M.2 Key E
1 x I/O Shield

Documentation
1 x User guide
1 x ACC Express Activation Key Card
Audio Feature Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
Back Panel I/O Ports -2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
-4 x USB 3.2 Gen 1 ports (4 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x DisplayPort
-1 x HDMI port
-1 x VGA port
-2 x Intel 2.5Gb Ethernet ports
-5 x Audio jacks
-1 x BIOS FlashbackTM button
CPU Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core
Ethernet 2 x Intel 2.5Gb Ethernet
ASUS LANGuard
Expansion Slots Intel 13th & 12th Gen Processors*
- 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)

Intel W680 Chipset
- 2 x PCIe 3.0 x16 slots (supports x4 mode)
- 1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table at the support site
Graphics Card 1 x DisplayPort**
1 x HDMI port***
1 x VGA port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Internal I/O Connectors Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin W_PUMP+ header
3 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector

Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
1 x LPT header
1 x T-sensor
1 x Clear CMOS header
1 x COM Port header
1 x BMC Header
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x Flexkey button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x M.2 slot (Key E)
1 x LPT_P80 Switch
1 x Thunderbolt header
Manageability WOL by PME, PXE
MEMORY / STORAGE 4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Operating System Windows 11, Windows 10 64-bit
Software Features Intel vPro support
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Power Saving

ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR

IT Management software supported
- ASUS Control Center Express(ACCE)

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3

FlexKey
Intel vPro support
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Power Saving

ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR

IT Management software supported
- ASUS Control Center Express(ACCE)
UEFI BIOS

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
FlexKey
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- CPU Socket lever protector
- SafeDIMM
- SafeSlot
- BIOS FlashBack button
- BIOS FlashBack LED

Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
Storage Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel W680 Chipset**
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)***
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
*** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.
USB Rear USB (Total 8 ports)
- 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)*
Warranty Information
Warranty 3 Years Replacement Warranty

ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard

The ASUS Pro WS W680-ACE LGA1700 ATX Workstation Motherboard is a powerhouse designed for professional workloads, offering exceptional performance, reliability, and expandability. Powered by the Intel W680 chipset and supporting 13th Gen Intel Core processors, this motherboard delivers robust computing capabilities for demanding tasks. Featuring four DIMM slots supporting up to 192GB of DDR5 ECC and non-ECC memory, the motherboard ensures seamless multitasking and efficient data processing. With dual-channel memory architecture and support for Intel Extreme Memory Profile (XMP) and OptiMem II, it maximizes memory performance and stability. For graphics, the motherboard provides versatile connectivity options, including DisplayPort, HDMI, and VGA ports, enabling high-resolution display output with support for up to 8K@60Hz and 4K@60Hz resolutions. Expansion slots include PCIe 5.0 and PCIe 3.0 slots for high-speed data transfer and compatibility with a wide range of expansion cards, while storage options include multiple M.2 slots and SATA 6Gb/s ports, supporting PCIe RAID configurations for enhanced storage performance and reliability. Networking is optimized with dual Intel 2.5Gb Ethernet ports and ASUS LANGuard technology, ensuring fast and stable network connectivity. The motherboard also features USB connectivity, with rear and front USB ports for convenient peripheral connections. Audio quality is top-notch with Realtek 7.1 Surround Sound High Definition Audio CODEC, delivering immersive sound for multimedia content creation and entertainment. Built with ASUS 5X PROTECTION III and ASUS Q-Design features, including DIGI+ VRM, ESD Guards, and Q-LED indicators, the motherboard prioritizes stability, durability, and ease of use. Additionally, ASUS EZ DIY features like BIOS FlashBack button and FlexKey enhance user experience and system maintenance. With support for Intel vPro, ASUS Control Center Express, and other management software, the motherboard offers advanced IT management capabilities for business environments. Overall, the ASUS Pro WS W680-ACE motherboard combines powerful performance, reliability, and advanced features to meet the demands of professional workstations, making it an ideal choice for content creators, designers, and other professionals.

Features:

  • CPU Compatibility: Designed for 13th Gen Intel Core processors and 12th Gen Intel Core CPUs, offering powerful performance for professional applications.
  • Chipset: Powered by the Intel W680 chipset, ensuring robust connectivity, stability, and compatibility.
  • Memory: Supports up to 192GB of DDR5 ECC and non-ECC un-buffered memory across four DIMM slots. The dual-channel memory architecture, along with support for Intel Extreme Memory Profile (XMP) and OptiMem II, enhances memory performance and stability.
  • Graphics: Features DisplayPort, HDMI, and VGA ports for versatile display connectivity, supporting resolutions up to 8K@60Hz and 4K@60Hz.
  • Expansion Slots: Offers PCIe 5.0 x16 slots for high-speed data transfer and PCIe 3.0 x16 slots for expansion cards, providing flexibility and scalability.
  • Storage: Supports three M.2 slots and eight SATA 6Gb/s ports, enabling high-speed storage solutions and RAID configurations for enhanced data management.
  • Networking: Equipped with dual Intel 2.5Gb Ethernet ports and ASUS LANGuard technology for fast and stable network connectivity.
  • Audio: Features Realtek 7.1 Surround Sound High Definition Audio CODEC with premium audio capacitors and dedicated audio PCB layers for immersive sound quality.
  • Back Panel I/O Ports: Provides a comprehensive array of USB ports, including USB 3.2 Gen 2 and Gen 1 ports, along with DisplayPort, HDMI, VGA, Ethernet, and audio jacks.
  • Special Features: Incorporates ASUS 5X PROTECTION III for enhanced reliability, ASUS Q-Design features for ease of use, ASUS Thermal Solution for efficient heat dissipation, and ASUS EZ DIY features for hassle-free installation and maintenance.
  • Software Features: Supports Intel vPro and includes ASUS Exclusive Software such as Armoury Crate, Fan Xpert 4, and Power Saving utilities for enhanced system management and optimization.
  • UEFI BIOS: Features a 256Mb Flash ROM with UEFI AMI BIOS for intuitive system configuration and customization.
  • Accessories: Comes with essential accessories including SATA cables, a Q-connector, M.2 rubber packages, and documentation.
  • Operating System Compatibility: Compatible with Windows 11 and Windows 10 64-bit operating systems.
  • Warranty: Backed by a 3-year replacement warranty, ensuring peace of mind and long-term reliability.

In summary, the ASUS Pro WS W680-ACE motherboard offers a comprehensive set of features tailored for professional workstations, combining performance, reliability, and versatility to meet the needs of demanding workloads.
