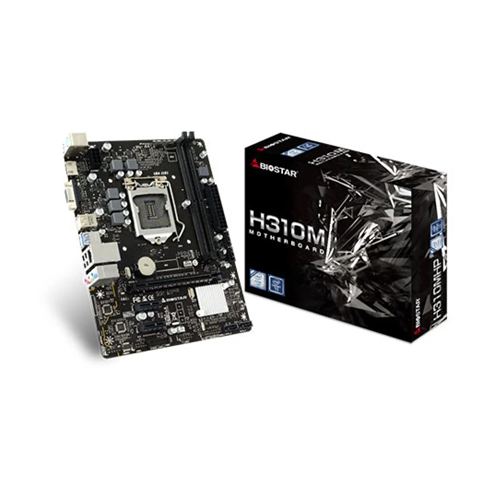

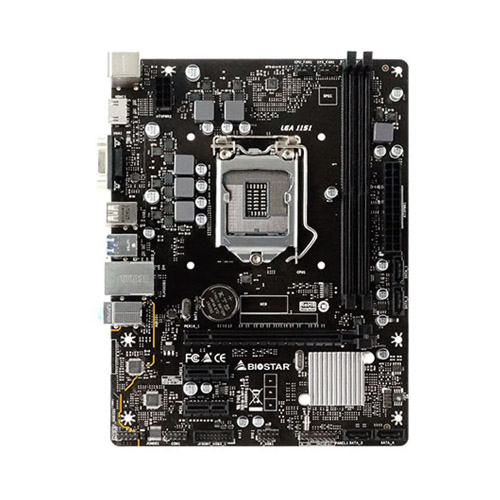

Biostar H310MHP Socket Motherboard
- Stock: In Stock
- Brand: BIOSTAR
- Model: H310MHP
Key Features
- Supports 9th and 8th Gen Intel Processor
- Supports Socket 1151
- Supports DDR4 2666 Memory
- Max. capacity memory: 64GB
| Main Features | |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.05V Voltage Multi-adjustment |
| Form Factor | - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design |
| General Information | |
| Basic Information | Supported CPU: Supports 9th and 8th Gen Intel Core Processors (Socket 1151) Chipset: Intel H310 |
| D-Sub (s) | 1 x D-Sub Port |
| DVI-D (s) | 1 x DVI-D Port |
| Expansion Slots | PCI: - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x1 Slot |
| Memory | Type: Dual Channel DDR4 Memory Technology Slots: 2 x DDR4 DIMM Slots Supported Memory: Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots Maximum Memory: 64GB |
| TPM (Trusted Platform Module ) | - 1 x TPM Header |
| Graphics Specifications | |
| Graphics Memory | - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
| Connector & ports | |
| HDMI | 1 x HDMI Port |
| Internal I/O Ports | - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Performance Mode / Easy OC Header |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB (s) | -4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| Warranty Information | |
| Warranty | 03 years |
Biostar Intel Chipset H310MHP Socket Motherboard
Features
- CPU Compatibility: Supports Socket 1151 for 9th / 8th Gen Intel Core, Pentium, and Celeron processors with a maximum TDP of 95Watt.
- Chipset: Intel H310 chipset.
- Memory Compatibility: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 with a maximum capacity of up to 32GB.
- PCIe Slots: 1x PCIe 3.0 x16 Slot and 2x PCIe 2.0 x1 Slots.
- Storage: 4 x SATA III Connectors (6Gb/s).
- LAN: Realtek RTL8111H LAN controller with 10/100/1000 Mb/s auto-negotiation and half/full duplex capability.
- Audio: Integrated ALC887 7.1 channels, high definition audio, and support for HD Audio.
- USB Ports: 4x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal header), and 6x USB 2.0 ports (4 on rear I/Os and 2 via internal header).
- Form Factor: Micro ATX form factor with dimensions of 226mm x 171mm (W x L).
- Other Features: Comes with BIO-FLASHER, 2 x SATA cables, 1 x I/O shield, 1 x DVD driver, and 1 x quick guide. Supports Windows 7/10/11(64bit) operating systems and comes with a 3-year warranty.
