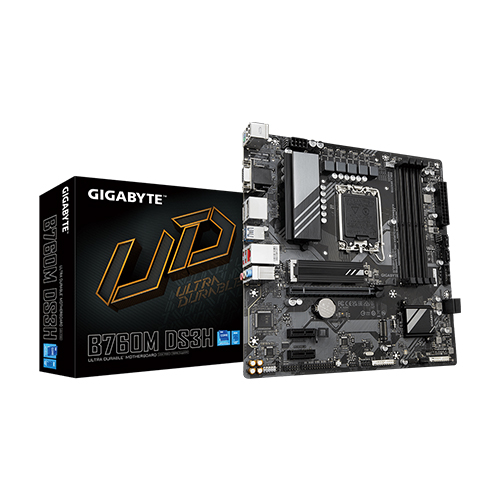

Gigabyte B760M DS3H DDR5 12th And 13th Gen Intel Motherboard

Gigabyte B760M DS3H DDR5 12th And 13th Gen Intel Motherboard

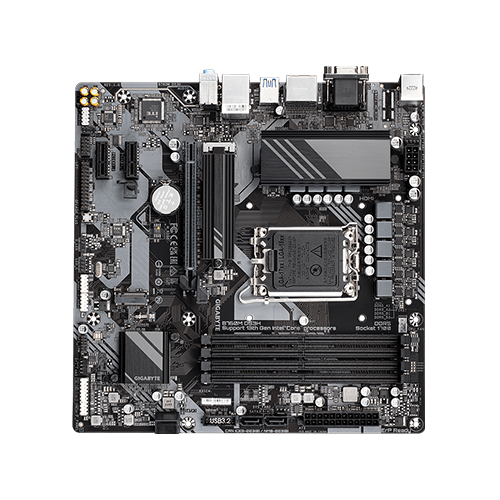

The Gigabyte B760M DS3H DDR5 motherboard is a high-performance and feature-rich option designed to support the 12th and 13th Generation Intel Core processors, Pentium Gold, and Celeron processors in the LGA1700 socket. This Micro ATX form factor motherboard is equipped with advanced technologies and components to deliver excellent performance and functionality.

The motherboard features a reliable and efficient BIOS system with a 128 Mbit flash memory and licensed AMI UEFI BIOS. It supports various industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring compatibility with a wide range of hardware and software.

With the Intel B760 Express Chipset, this motherboard provides robust connectivity and expansion options. It includes a comprehensive range of ports and connectors on the back panel, including USB 2.0 and 3.2 Gen 1 ports, PS/2, D-Sub, HDMI, DisplayPorts, RJ-45, and audio jacks. Additionally, it features a USB Type-C port with USB 3.2 Gen 2 support, enabling high-speed data transfer.

The motherboard supports high-definition audio with a Realtek Audio CODEC, offering 2/4/5.1/7.1-channel audio output and support for S/PDIF out. This ensures immersive and crystal-clear sound quality for an enhanced audio experience.

For expansion, the B760M DS3H DDR5 provides a PCI Express x16 slot that supports PCIe 4.0 for high-performance graphics cards. It also includes two PCI Express x1 slots for additional add-on cards. The motherboard supports up to 192 GB of DDR5 memory across four DIMM sockets, with various memory module speed options, including overclocking capabilities.

The Gigabyte B760M DS3H DDR5 motherboard features comprehensive internal I/O connectors, including power connectors, fan headers, M.2 slots, SATA connectors, USB headers, and audio headers. It also includes features like voltage detection, temperature detection, fan speed control, and fail warning for efficient hardware monitoring and management.

With its support for Windows 11 and Windows 10 operating systems, extensive storage interfaces, RAID support, Gigabyte Control Center, and Q-Flash technology, this motherboard offers a reliable and powerful platform for building a high-performance desktop system. It is an excellent choice for gamers, content creators, and professionals who require a feature-packed motherboard with excellent performance and expandability.

Features

• CPU Support: The motherboard is compatible with the 12th and 13th Generation Intel Core processors, Pentium Gold, and Celeron processors, utilizing the LGA1700 socket. This allows for excellent performance and future upgradeability.
• DDR5 Memory Support: The motherboard supports high-speed DDR5 memory modules, offering a wide range of memory speeds and capacities. It supports up to 192 GB of system memory across four DDR5 DIMM sockets, enabling smooth multitasking and efficient data processing.
• Advanced Audio Capabilities: With the integrated Realtek Audio CODEC, the motherboard provides high-definition audio output, supporting 2/4/5.1/7.1-channel configurations. It also offers support for S/PDIF Out, delivering immersive and high-quality audio for gaming, multimedia, and content creation.
• Expandability Options: The motherboard features a variety of expansion slots, including a PCI Express x16 slot that supports PCIe 4.0 for high-performance graphics cards. Additionally, it includes two PCI Express x1 slots for additional expansion cards, allowing users to customize their system according to their needs.
• Efficient Hardware Monitoring: The motherboard includes hardware monitoring capabilities such as voltage detection, temperature detection, fan speed detection, and water cooling flow rate detection. It also provides fan fail warnings and fan speed control for efficient cooling management.
• Versatile Storage Options: The motherboard offers multiple storage interfaces, including M.2 connectors (M2A_CPU and M2P_SB) for high-speed NVMe SSDs and four SATA 6Gb/s connectors for traditional storage devices. It also supports RAID 0, 1, 5, and 10 configurations for enhanced data protection and performance.

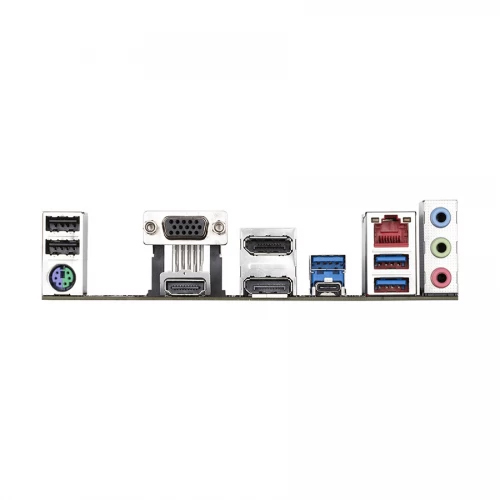

• Back Panel Connectivity: The back panel of the motherboard features a range of connectors, including USB 2.0/3.2 Gen 1 ports, USB Type-C port with Gen 2 support, HDMI and DisplayPort outputs, PS/2 port, LAN port, and audio jacks. These provide easy access and connectivity to various peripherals and devices.
• Easy System Management: The motherboard includes unique features such as GIGABYTE Control Center (GCC), which provides a centralized platform for monitoring and controlling system settings. It also supports Q-Flash and Q-Flash Plus for convenient and reliable BIOS updating.
• Broad OS Compatibility: The motherboard is compatible with both Windows 11 64-bit and Windows 10 64-bit operating systems, ensuring broad software support and compatibility.
• Reliable Networking: The Gigabyte motherboard features a Realtek 2.5GbE LAN chip, offering high-speed and stable network connectivity with support for 2.5 Gbps, 1 Gbps, and 100 Mbps speeds.
