GIGABYTE B660M GAMING X DDR5 12th Gen Micro-ATX Motherboard

GIGABYTE B660M GAMING X DDR5 12th Gen Micro-ATX Motherboard

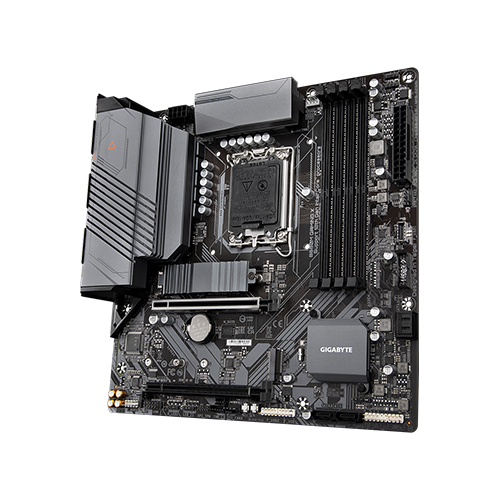

The GIGABYTE B660M GAMING X DDR5 12th Gen Micro-ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts and PC builders. It features the latest technologies and a compact micro-ATX form factor, making it suitable for smaller PC cases without compromising on performance.

At the core of the motherboard is the Intel B660 Express Chipset, which provides excellent stability and support for 12th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. This allows users to harness the power of the latest CPU architectures for enhanced gaming and multitasking performance.

The motherboard supports DDR5 memory modules with speeds up to 5600MHz (overclocked), providing ample bandwidth for demanding applications and smooth gameplay. With four DDR5 DIMM sockets, the motherboard supports up to 192GB of system memory, allowing for future expansion and efficient multitasking.

For graphics, the GIGABYTE B660M GAMING X features integrated Intel HD Graphics support with HDMI 2.1 and DisplayPort outputs. This enables users to connect high-resolution displays and enjoy immersive visuals with support for up to 4K resolution at 60Hz. The motherboard also supports multiple GPUs with a PCI Express x16 slot running at x16 and another running at x4, allowing for multi-GPU setups for enhanced gaming performance.

In terms of connectivity, the motherboard offers a range of ports and headers. On the rear panel, you'll find three USB 3.2 Gen 1 ports, five USB 2.0/1.1 ports, an HDMI 2.1 port, a DisplayPort, an RJ-45 port for Ethernet, and three audio jacks. The internal connectors include M.2 slots for high-speed storage, SATA connectors for traditional hard drives and SSDs, USB headers, RGB LED strip headers, and more.

The motherboard also includes features like high-definition audio with support for 2/4/5.1/7.1-channel output and S/PDIF out, as well as H/W monitoring for voltage, temperature, and fan speed control. Additionally, it comes with a reliable and user-friendly BIOS based on licensed AMI UEFI, ensuring easy setup and system configuration.

Features

• Intel B660 Express Chipset: The motherboard utilizes the Intel B660 Express Chipset, providing stable and reliable performance for 12th Generation Intel Core, Pentium Gold, and Celeron processors.
• DDR5 Memory Support: The motherboard supports high-speed DDR5 memory modules, with speeds up to 5600MHz (overclocked). It has four DDR5 DIMM sockets, allowing for a maximum system memory capacity of 192GB.
• Expansion Slots: It features one PCI Express x16 slot running at x16 (PCIEX16) and one PCI Express x16 slot running at x4 (PCIEX4). These slots offer flexibility for adding dedicated graphics cards or other expansion cards.
• High Definition Audio: The Realtek Audio CODEC on the motherboard delivers high-quality audio output. It supports 2/4/5.1/7.1-channel configurations and includes support for S/PDIF Out.

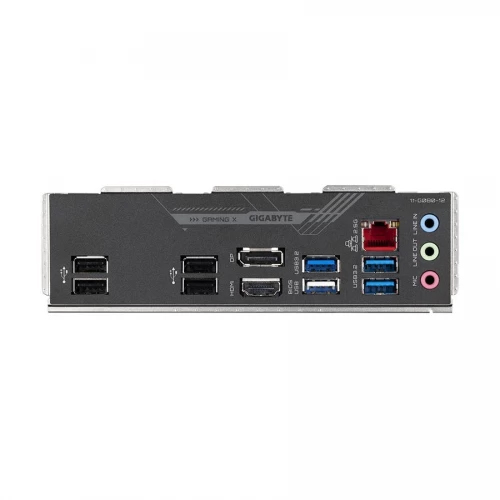

• Comprehensive Back Panel Connectors: The back panel includes three USB 3.2 Gen 1 ports, five USB 2.0/1.1 ports, one HDMI 2.1 port, one DisplayPort, one RJ-45 port for Ethernet connectivity, and three audio jacks. These ports provide various options for connecting peripherals and external devices.
• Onboard Graphics Support: The integrated Intel HD Graphics support on the motherboard includes one HDMI port and one DisplayPort. It offers high-resolution output and supports up to 4K resolution at 60Hz.
• High-Speed Storage Interfaces: The motherboard provides multiple storage options, including a CPU M.2 connector (Socket 3, M key) with PCIe 4.0 x4/x2 SSD support and a chipset M.2 connector (Socket 3, M key) with PCIe 4.0 x4/x2 SSD support. It also has four SATA 6Gb/s connectors for traditional storage devices.
• LAN Connectivity: The motherboard features a 2.5GbE LAN chip, which provides fast and reliable network connectivity at speeds of 2.5 Gbps, 1 Gbps, and 100 Mbps.
• USB Connectivity: The motherboard offers various USB ports, including a USB Type-C port with USB 3.2 Gen 2 support, five USB 3.2 Gen 1 ports, and a USB 2.0/1.1 port on the back panel. It also includes additional USB 2.0/1.1 ports available through internal USB headers.
• H/W Monitoring and Fan Control: The motherboard includes H/W monitoring features for voltage, temperature, and fan speed detection. It also provides fan speed control and warnings for fan failure.

Overall, the GIGABYTE B660M GAMING X DDR5 12th Gen Micro-ATX Motherboard is a feature-packed and high-performance option for gamers and PC enthusiasts looking to build a compact yet powerful system. Its support for the latest technologies, expandability options, and robust build quality make it a solid choice for any gaming or content creation setup.
