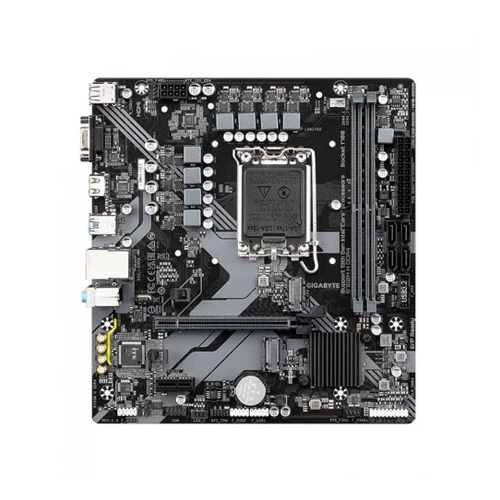

Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard

Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard

The Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard is a high-performance motherboard designed for LGA1700 socket, offering support for the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors. With its Micro ATX form factor, it provides a compact yet powerful solution for various computing needs.

One notable feature of this motherboard is its reliable and efficient BIOS. It comes with a 128 Mbit flash BIOS, utilizing licensed AMI UEFI BIOS technology. It supports various industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring compatibility and ease of use.

The Intel B760 Express Chipset forms the backbone of this motherboard, providing stable and efficient performance. It offers a range of connectivity options, including 2 USB 2.0/1.1 ports, 1 D-Sub port, 1 HDMI port, 4 USB 3.2 Gen 1 ports, 1 RJ-45 port, and 3 audio jacks. The motherboard also features Realtek Audio CODEC with High Definition Audio support, allowing for immersive sound experiences and flexible audio configurations.

In terms of expansion slots, the Gigabyte B760M H DDR4 motherboard offers a PCI Express x16 slot supporting PCIe 4.0, and a PCI Express x1 slot supporting PCIe 3.0. This enables users to enhance their system's capabilities by adding dedicated graphics cards, sound cards, or other expansion cards.

The motherboard incorporates comprehensive hardware monitoring features, including voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, and fan fail warning. Users can also control fan speeds for optimal cooling performance.

For internal connectivity, the motherboard provides a range of connectors, such as ATX power connectors, CPU and system fan headers, M.2 Socket 3 connectors, SATA 6Gb/s connectors, USB headers, front panel headers, and more. These connectors offer flexibility and support for various peripherals and storage devices.

The Gigabyte B760M H DDR4 motherboard supports DDR4 memory modules with speeds up to 3200 MHz, allowing for efficient multitasking and smoother system operation. It features dual-channel memory architecture and can support up to 64GB of system memory, depending on the configuration.

With integrated Intel HD Graphics support, including a D-Sub port and an HDMI port, the motherboard enables seamless visuals and supports high resolutions up to 4096x2160@60Hz. It also supports the latest HDMI 2.0 version and HDCP 2.3 for enhanced video playback and content protection.

This motherboard is compatible with both Windows 10 and Windows 11 64-bit operating systems, offering a modern and optimized computing experience.

Features

• Compatibility and Performance: The motherboard supports the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors, offering powerful performance for various computing tasks.
• Compact Form Factor: Designed in a Micro ATX form factor measuring 23.0cm x 21.5cm, it provides a compact and space-efficient solution for different system builds.
• Reliable BIOS: Equipped with a 128 Mbit flash BIOS and licensed AMI UEFI BIOS, it ensures stable system operation. It supports industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.
• Audio Enhancement: Features a Realtek Audio CODEC that supports High Definition Audio with 2/4/5.1/7.1-channel configurations. It also includes support for S/PDIF Out, allowing for high-quality audio output.
• Expansion Slots: Offers a PCI Express x16 slot (running at x16) for PCIe 4.0 support and a PCI Express x1 slot (running at x1) for PCIe 3.0 support. These slots enable the addition of dedicated graphics cards, sound cards, or other expansion cards.
• H/W Monitoring: Provides comprehensive hardware monitoring capabilities, including voltage detection, temperature detection, fan speed detection, water cooling flow rate detection, fan fail warning, and fan speed control.

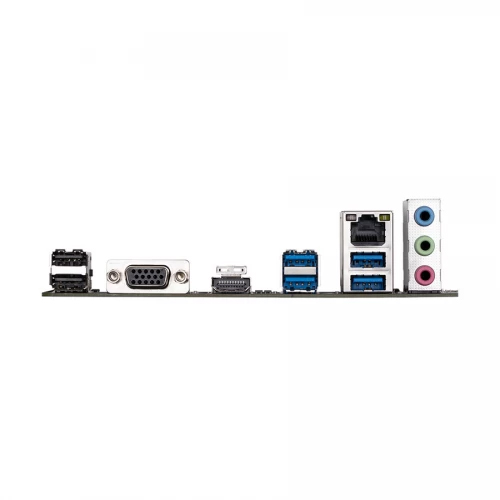

• Connectivity Options: The motherboard includes various back panel connectors such as USB 2.0/1.1 ports, D-Sub and HDMI ports, USB 3.2 Gen 1 ports, RJ-45 port, and audio jacks. These connectors offer versatile connectivity options for peripherals and devices.
• Memory Support: Supports DDR4 memory modules with speeds up to 3200 MHz, offering efficient multitasking and system responsiveness. It features dual-channel memory architecture and can support up to 64GB of system memory.
• Storage Interface: Features M.2 connectors (M2A_CPU and M2P_SB) supporting PCIe 4.0 x4/x2 SSDs, providing fast storage options. It also includes four SATA 6Gb/s connectors and supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices.
• Onboard Graphics: Integrated Intel HD Graphics support with a D-Sub port (max resolution 1920x1200@60 Hz) and an HDMI port (max resolution 4096x2160@60 Hz). It supports HDMI 2.0 version and HDCP 2.3, ensuring high-quality video playback.
• Operating System Support: Compatible with Windows 10 64-bit and Windows 11 64-bit, offering seamless integration with modern operating systems.
• USB Connectivity: Provides multiple USB ports, including six USB 3.2 Gen 1 ports (four on the back panel, two available through the internal USB header) and six USB 2.0/1.1 ports (two on the back panel, four available through internal USB headers). This allows for easy connection of USB devices and peripherals.

Overall, the Gigabyte B760M H DDR4 13th and 12th Gen Intel Motherboard combines powerful performance, reliable features, and a compact form factor, making it an excellent choice for users seeking a versatile and efficient motherboard for their Intel-based systems.
