Gigabyte B660M D2H DDR4 12th Gen And 13th Gen Intel Motherboard

Gigabyte B660M D2H DDR4 12th Gen And 13th Gen Intel Motherboard

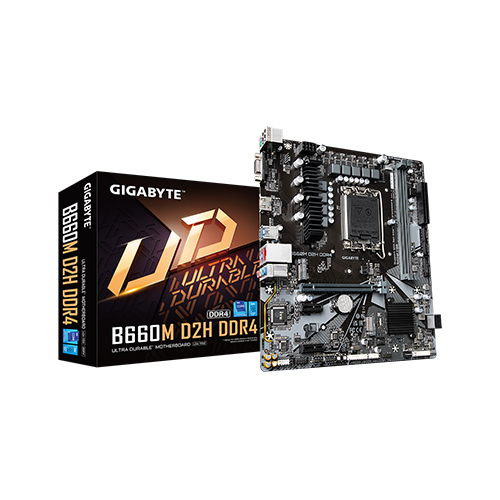

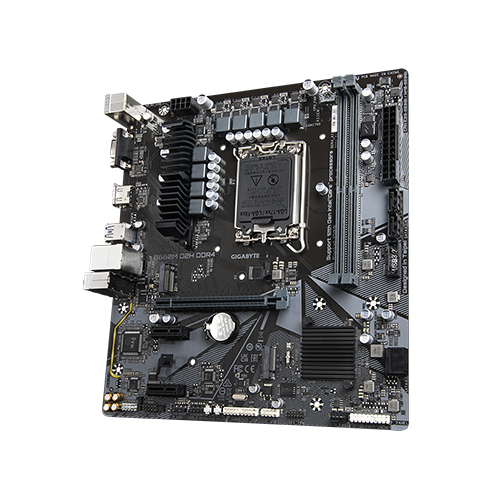

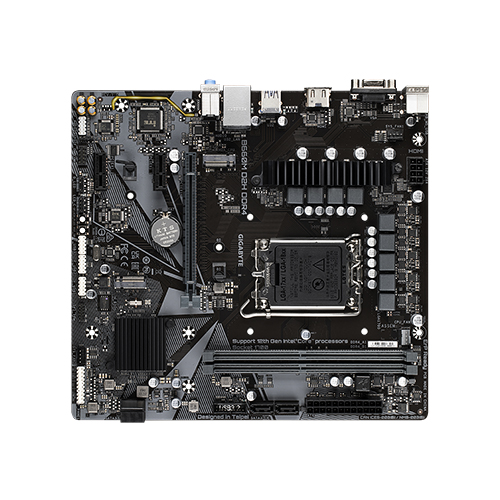

The Gigabyte B660M D2H DDR4 motherboard is designed to support both the 12th and 13th generation Intel Core processors, including Pentium Gold and Celeron processors. It features the Intel B660 Express chipset and offers a range of advanced features and connectivity options in a compact Micro ATX form factor.

In terms of memory, the motherboard supports DDR4 RAM modules with a maximum frequency of 5333MHz (overclocked). It has two DDR4 DIMM sockets that can accommodate up to 64GB of system memory, with support for dual-channel memory architecture. The motherboard also supports ECC and non-ECC un-buffered DIMM modules, as well as Extreme Memory Profile (XMP) memory modules.

For graphics, the Gigabyte B660M D2H motherboard features integrated Intel HD Graphics with support for a D-Sub port and an HDMI port. The HDMI port is capable of delivering a maximum resolution of 4096x2160@60Hz and supports HDMI 2.1 version and HDCP 2.3. It also supports native HDMI 2.1 TMDS compatible ports.

In terms of expansion slots, the motherboard offers one PCI Express x16 slot running at x16, conforming to the PCI Express 4.0 standard, and two PCI Express x1 slots conforming to the PCI Express 3.0 standard. This allows for the installation of a dedicated graphics card and other expansion cards such as sound cards, networking cards, or storage expansion cards.

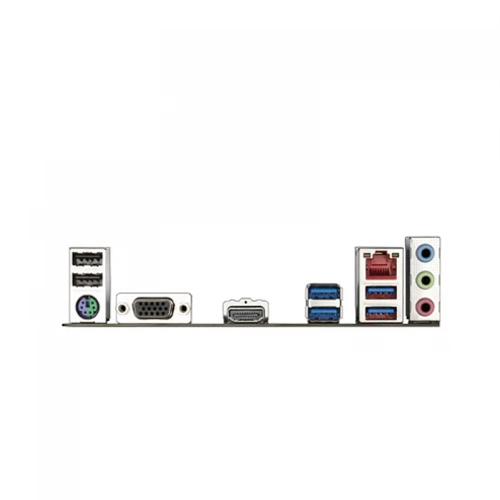

The motherboard provides a range of connectivity options with its back panel connectors, including a PS/2 keyboard/mouse port, D-Sub and HDMI ports for video output, multiple USB 3.2 Gen 1 and USB 2.0 ports, an RJ-45 port for Gigabit Ethernet connectivity, and audio jacks for high-definition audio output. Additionally, there are various internal connectors, including M.2 sockets, SATA connectors, USB headers, and more, for additional storage, peripherals, and accessories.

The motherboard is equipped with a Realtek audio CODEC, providing high-definition audio output with support for 2/4/5.1/7.1-channel configurations. It also features a Realtek 2.5GbE LAN chip for fast and reliable network connectivity.

Gigabyte B660M D2H Ddr4 Motherboard Price

The Gigabyte B660M D2H DDR4 12th Gen And 13th Gen Intel Motherboard is a high-quality motherboard designed to support 12th and 13th generation Intel processors. If you're looking for a reliable and versatile motherboard for your office, industry, or home use, this is an excellent choice. Packed with advanced features, it delivers exceptional performance and reliability.

When it comes to the price of the Gigabyte B660M D2H DDR4 motherboard in Bangladesh in 2023, you can find it at Ultratech, a trusted electronics store. While prices may vary depending on the market and any ongoing promotions, you can expect competitive pricing that offers excellent value for the features and performance this motherboard provides.

Features

• CPU Support: The motherboard supports LGA1700 socket, providing compatibility with 12th and 13th generation Intel Core processors, Pentium Gold, and Celeron processors. The L3 cache varies depending on the CPU.
• Memory Support: It supports DDR4 memory modules with a wide range of frequencies, including overclocked options up to 5333MHz (OC). The motherboard features dual-channel memory architecture and can accommodate up to 64GB of system memory using its two DDR4 DIMM sockets. It also supports ECC and non-ECC un-buffered DIMM modules and Extreme Memory Profile (XMP) memory modules.
• Graphics and Display: The motherboard features integrated Intel HD Graphics with support for D-Sub and HDMI ports. The HDMI port supports a maximum resolution of 4096x2160@60Hz, HDMI 2.1 version, HDCP 2.3, and native HDMI 2.1 TMDS compatible ports.
• Expansion Slots: It offers one PCI Express x16 slot running at x16, conforming to the PCI Express 4.0 standard, and two PCI Express x1 slots conforming to the PCI Express 3.0 standard. This allows for the installation of a dedicated graphics card and other expansion cards.
• Storage Options: The motherboard provides multiple storage options, including one M.2 connector (Socket 3) for high-speed PCIe 4.0 x4/x2 SSD support (M2A_CPU), one M.2 connector (Socket 3) for additional M.2 storage support (M2P_SB), and four SATA 6Gb/s connectors. It also supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations and is Intel Optane Memory Ready.
• Connectivity: The Gigabyte B660M D2H motherboard offers various connectivity options. It includes USB 3.2 Gen 1 and USB 2.0/1.1 ports, both on the back panel and available through internal headers. It also features a Realtek 2.5GbE LAN chip for high-speed Ethernet connectivity and audio jacks supporting 2/4/5.1/7.1-channel high-definition audio output.
• BIOS and Form Factor: The motherboard features a 256 Mbit flash BIOS with licensed AMI UEFI BIOS. It supports various standards like PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. The form factor is Micro ATX, measuring 22.5cm x 24.4cm, which makes it suitable for compact builds.

Overall, the Gigabyte B660M D2H DDR4 motherboard offers a solid foundation for building a powerful and versatile desktop system. With its support for the latest Intel processors, high-speed memory, expandability options, and various connectivity features, it caters to both casual users and enthusiasts looking for a reliable and feature-rich motherboard.
