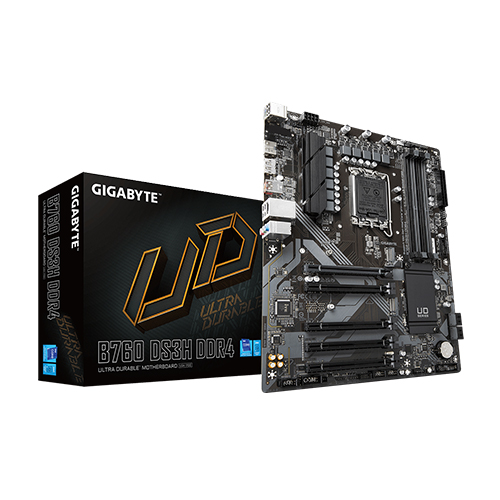

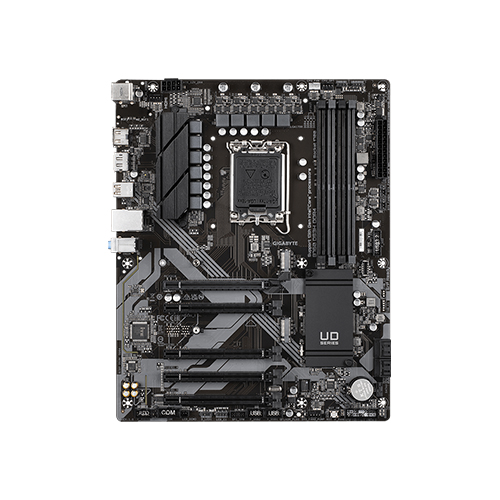

GIGABYTE B760 DS3H DDR4 13th and 12th Gen ATX Motherboard

GIGABYTE B760 DS3H DDR4 13th and 12th Gen ATX Motherboard

The GIGABYTE B760 DS3H DDR4 ATX Motherboard is a high-performance motherboard designed for the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors. With its robust features and cutting-edge technology, this motherboard caters to enthusiasts, gamers, and professionals alike, providing a seamless computing experience.

The motherboard boasts an ATX form factor with a dimension of 30.5cm x 24.4cm, providing a solid foundation for building a powerful and reliable PC. It features the Intel® B760 Express Chipset, which ensures excellent performance and stability while accommodating the latest processors.

In terms of memory, the B760 DS3H supports DDR4 RAM with an impressive speed range from 2133 MT/s up to 5333 MT/s (overclocked). The four DDR DIMM sockets can hold up to 128 GB of system memory, enabling smooth multitasking and efficient handling of memory-intensive tasks.

The onboard graphics include an HDMI port and a DisplayPort, both supporting high resolutions of up to 4096x2160@60 Hz and 4096x2304@60 Hz, respectively. The presence of HDCP 2.3 ensures seamless playback of protected content, making it ideal for media consumption and content creation purposes.

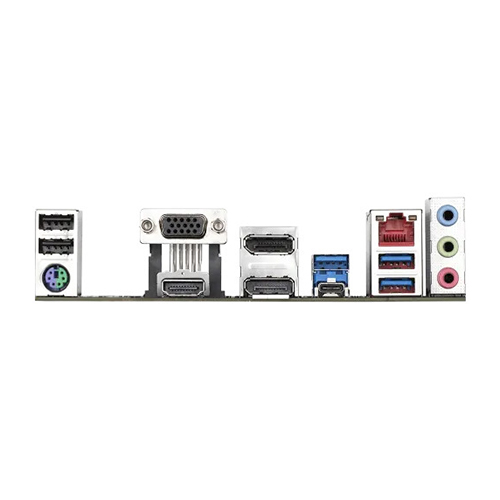

Connectivity options on the back panel are diverse, featuring a USB Type-C® port with USB 3.2 Gen 2x2 support, a red USB 3.2 Gen 2 Type-A port, four USB 2.0/1.1 ports, an HDMI port, a DisplayPort, an RJ-45 port for LAN, and three audio jacks. The inclusion of S/PDIF Out support allows for high-quality audio output, catering to audiophiles and gamers alike.

The motherboard's cooling capabilities are noteworthy, with various fan headers, including one for CPU fans, system fans, and water cooling pumps. The H/W monitoring features, such as voltage detection, temperature detection, and fan speed control, enable users to keep their system running optimally and prevent overheating.

Additionally, the B760 DS3H comes with multiple internal I/O connectors, including M.2 sockets for high-speed SSD support, SATA connectors for traditional storage devices, USB headers for expanding USB connectivity, RGB LED strip headers for customizable lighting and a Q-Flash Plus button for easy BIOS updates.

Furthermore, it supports the latest Windows operating systems, including Windows 11 64-bit and Windows 10 64-bit, ensuring compatibility with the latest software and drivers.

GIGABYTE B760 DS3H Motherboard Price In BD

Looking for an affordable yet feature-packed motherboard? The GIGABYTE B760 DS3H DDR4 13th and 12th Gen ATX Motherboard offers unbeatable value for money. Check out the latest price in BD 2023 at Ultratech and unlock unparalleled performance for your PC build.

Whether you're a home user, an office professional, or an industrial worker, this motherboard caters to your computing needs without breaking the bank. Experience seamless multitasking, high-definition audio, and cutting-edge connectivity options with this budget-friendly motherboard. Don't miss out on this incredible deal! Upgrade your PC today and enjoy top-notch performance with GIGABYTE's B760 DS3H motherboard.

Features

• LGA1700 Socket: The motherboard supports the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors, ensuring compatibility with a wide range of modern CPUs.
• Memory Support: It supports DDR4 RAM with an impressive speed range from 2133 MT/s up to 5333 MT/s (overclocked). The four DDR DIMM sockets can accommodate up to 128 GB of system memory in a dual-channel memory architecture.
• PCIe Expansion Slots: The motherboard offers one PCI Express x16 slot that supports PCIe 4.0, running at x16 (PCIEX16) for graphics cards, and four PCI Express x16 slots supporting PCIe 3.0, running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) for other expansion cards.
• High Definition Audio: Equipped with a Realtek Audio CODEC, the motherboard delivers high-quality 2/4/5.1/7.1-channel audio output, ensuring an immersive sound experience. It also supports S/PDIF Out for digital audio connectivity.
• Onboard Graphics: The motherboard features HDMI and DisplayPort outputs, supporting high resolutions of up to 4096x2160@60 Hz and 4096x2304@60 Hz, respectively. This allows for smooth and crisp visuals, making it suitable for multimedia and gaming applications.
• Connectivity: The back panel offers various connectivity options, including a USB Type-C® port with USB 3.2 Gen 2x2 support, a red USB 3.2 Gen 2 Type-A port, four USB 2.0/1.1 ports, an RJ-45 port for LAN, and three audio jacks for audio devices.
• Cooling and Monitoring: The motherboard provides comprehensive hardware monitoring features, including voltage detection, temperature detection, fan speed detection, and water cooling flow rate detection. It also offers fan speed control and fan fail warnings to keep the system cool and stable.
• Storage Interface: The motherboard includes multiple storage options, such as a CPU M.2 connector supporting PCIe 4.0 x4/x2 SSDs (M2A_CPU), a Chipset M.2 connector supporting PCIe 4.0 x4/x2 SSDs (M2P_SB), and four SATA 6Gb/s connectors for traditional storage devices.
• I/O Headers: The motherboard comes with various internal I/O connectors, such as addressable LED strip headers, RGB LED strip headers, USB headers, and front panel headers, enabling users to expand connectivity and customize their PC's lighting.
• Operating System Support: It supports both Windows 11 64-bit and Windows 10 64-bit, ensuring compatibility with the latest operating systems and software.

Overall, the GIGABYTE B760 DS3H DDR4 ATX Motherboard is a feature-rich and powerful option for users seeking a reliable and high-performance foundation for their desktop PC build. Whether it's for gaming, content creation, or productivity tasks, this motherboard offers a wide array of capabilities that will satisfy the demands of modern computing.
