GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX MOTHERBOARD
Discontinued
- Stock: Discontinued
- Brand: Gigabyte
- Model: Z790 AORUS ELITE AX
Discontinued
Key Features
- ATX Form Factor: 30.5cm x 24.4cm
- 1 x 256 Mbit flash
- 1 x HDMI 2.0 port
- 1 x USB Type-C
| General Information | |
| Audio Feature | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1- channel audio, access the audio software for audio settings. Support for S/PDIF Out |

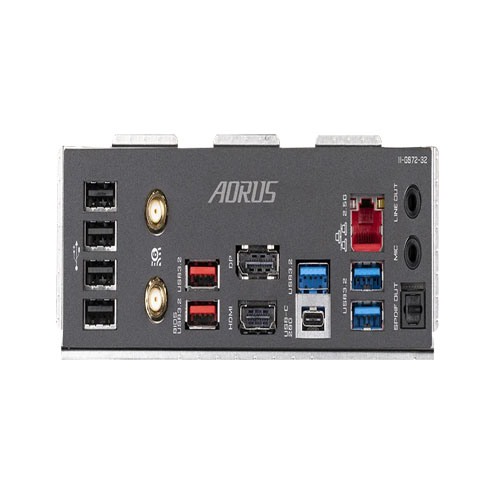

| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| H/W Monitoring | Voltage detection
Temperature detection
Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| I/O Controller | iTE® I/O Controller Chip |
| Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| USB | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Wireless Communication module | WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Main Features | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | Intel® Z790 Express Chipset |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty Information | |
| Warranty | 3 Year |
Gigabyte Z790 Aorus Elite Ax Ice Ddr5 Atx Motherboard
GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX Motherboard stands as a pinnacle of performance and innovation, designed to cater to the needs of demanding users and enthusiasts. Engineered for the latest 12th Gen Intel Core processors, it heralds a new era of computing power. This motherboard boasts an array of cutting-edge features, including support for DDR5 memory, which ensures lightning-fast speeds and enhanced multitasking capabilities. Its robust architecture enables seamless overclocking, pushing the boundaries of performance without compromising stability. Equipped with PCIe 5.0 slots, it facilitates blazing-fast data transfer rates for graphics cards and high-speed storage devices, unlocking the full potential of next-gen hardware. The inclusion of USB 3.2 Gen2x2 ports further accentuates its forward-looking design, ensuring rapid connectivity for peripherals and devices. The AORUS ELITE AX ICE incorporates advanced thermal solutions, keeping temperatures in check even during extended gaming or intensive workloads. Its sleek design, coupled with customizable RGB lighting, adds a touch of style to any build, catering to enthusiasts seeking both performance and aesthetics. This motherboard isn’t just a powerhouse; it's a testament to GIGABYTE's commitment to innovation, offering a platform that anticipates and embraces the evolving landscape of high-performance computing. Whether for gaming, content creation, or professional applications, the Z790 AORUS ELITE AX ICE DDR5 ATX Motherboard stands as a reliable cornerstone for building a top-tier system.
Gigabyte Z790 Aorus Elite Motherboard Price in BD
Ideal for office environments seeking robust performance, the GIGABYTE Z790 AORUS ELITE AX ICE DDR5 ATX Motherboard ensures seamless operations for productivity tasks. Its compatibility with 12th Gen Intel Core processors empowers office setups to handle demanding applications with ease. The DDR5 memory support enhances multitasking capabilities, enabling swift data processing for office software, multitab browsing, and data analysis. With USB 3.2 Gen2x2 ports, file transfers become lightning-fast, streamlining workflow efficiency. This motherboard's stability, coupled with efficient thermal management, ensures reliability, making it a valuable asset in fostering a productive office environment.
Features
- DDR5 Memory Support: Harness the power of next-generation memory for faster speeds and improved multitasking capabilities.
- 12th Gen Intel Core Processor Compatibility: Built to accommodate the latest generation Intel processors, ensuring top-tier performance.
- PCIe 5.0 Slots: Enable lightning-fast data transfer rates for GPUs and high-speed storage devices, maximizing hardware potential.
- USB 3.2 Gen2x2 Ports: Deliver rapid connectivity for peripherals and devices, supporting ultra-fast data transfer rates.
- Advanced Thermal Solutions: Robust cooling systems and heat dissipation mechanisms keep temperatures low during intense gaming or heavy workloads.
- Customizable RGB Lighting: Add a touch of style and personalization to your build with customizable RGB lighting options.
- Overclocking Capabilities: Built to support and enhance overclocking, pushing the limits of performance without compromising stability.
- ATX Form Factor: A standard form factor ensuring compatibility with a wide range of PC cases and builds.
- Enhanced Audio: High-quality audio components and features for an immersive sound experience.
- AORUS BIOS: Intuitive and user-friendly BIOS interface for easy customization and tweaking of settings.
